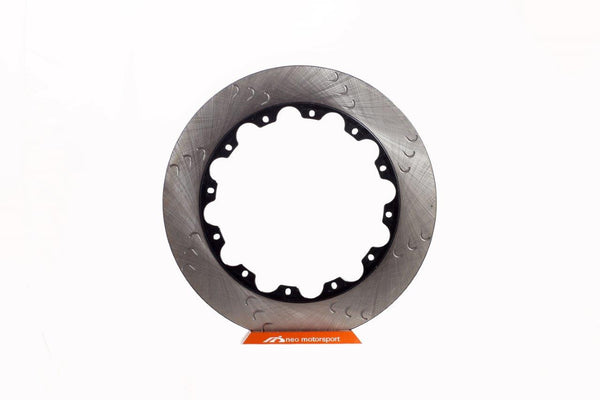

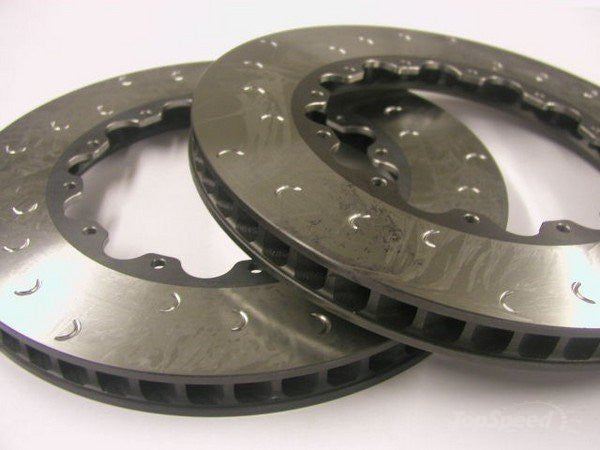

NEO Motorsport Replacement Rotor Rings
Material
ISO200 Grey Cast Iron
|
SKU
|
A | B | C | D | T |
PCD
|
Mounting Hole Number
|
Mounting Hole Spec.
|
Mounting Bolt Spec
|
| Inside Flange Dia. | Eye Dia. | Outside Dia. | Ftg Flange Thickness | Thickness | |||||
| 286x26-F | 156 | 180 | 286 | 7 | 6 | 167 | 12 | 8 x 6.4 +/- 0.5 | M6 x P1.0 |
| 304x26-F | 165 | 196 | 304 | 7 | 26 | 179 | 12 | 8 x 6.4 +/- 0.5 | M6 x P1.0 |
| 330x32-F | 175 | 214 | 330 | 7 | 32 | 190.5 | 12 | 9 x 9 +/- 0.5 | M8 x P1.25 |
| 345x32-F | 175 | 219 | 345 | 7 | 32 | 190.5 | 12 | 9 x 9 +/- 0.5 | M8 x P1.25 |
| 356x32-F | 202 | 229 | 345 | 7 | 32 | 190.5 | 12 | 9 x 9 +/- 0.5 | M8 x P1.25 |
| 380x32-F | 224 | 264 | 380 | 7 | 32 | 240 | 12 | 9 x 9 +/- 0.5 | M8 x P1.25 |
| 330x28-R | 202 | 233 | 330 | 7 | 28 | 215.9 | 12 | 8 x 6.45 +/- 0.5 | M6 x P1.0 |
| 356x28-R | 202 | 262 | 356 | 7 | 28 | 215.9 | 12 | 8 x 6.45 +/- 0.5 | M6 x P1.0 |
| 356x28-RA* | 220 | 266 | 356 | 7 | 28 | 233 | 12 | 8 x 6.45 +/- 0.5 | M6 x P1.0 |
|
* for rear inner drum style parking brake
|
